Can You Use Hose Clamps on Braided Line

Using the right fitting for your fluid lines is a critical part of any build, whether you’re working on a high-performance vehicle, a hydraulic system, or a plumbing project. A common question we get is whether it’s safe or effective to use a simple hose clamp on a braided line.

Why is Braided Line Different from a Standard Rubber Hose?

When we talk about a braided line, we’re not just talking about a rubber tube. These hoses feature an inner core (often made of rubber, PTFE, or another synthetic material), a braided reinforcement layer (typically stainless steel, nylon), and sometimes an outer protective cover. This construction is designed to handle much higher pressure and resist expansion far better than a standard rubber hose.

A conventional hose clamp, like a worm-gear clamp, isn’t designed to properly engage with this complex, multi-layered structure, which can lead to big problems. The short answer is: it depends on the type of braided hose, the application’s pressure, and the specific kind of clamp. While it might work in some low-pressure situations, we generally advise against it for safety and reliability. Let’s break down the reasons why.

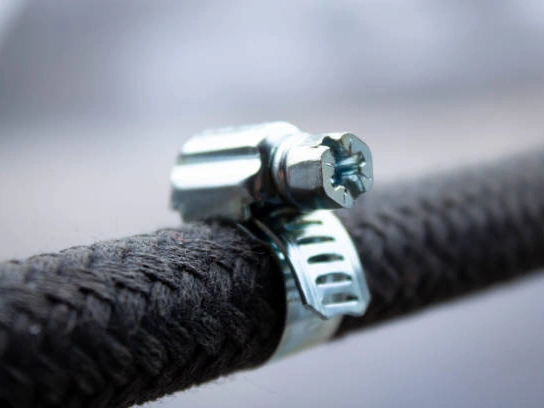

Can You Use Hose Clamps on Braided Lines

While a hose clamp might seem like a simple and convenient solution, its use on braided lines comes with several serious risks. The very nature of a worm-gear clamp—which provides an uneven, localized clamping force—is at odds with the design of a braided hose. Understanding these potential issues is crucial for preventing system failure and ensuring safety.

1. Will the Hose Clamp Cut the Braiding?

The most immediate risk is that the worm-gear clamp’s slotted band can snag and damage the braided reinforcement. As you tighten the clamp, the sharp edges of the slots can bite into the stainless steel or nylon braiding, compromising its structural integrity. This can weaken the hose significantly and, in high-pressure applications, may lead to a catastrophic burst. The clamp itself is often not strong enough to properly compress the hose without damaging it.

2. Can It Cause a Leak?

Yes, using a hose clamp on a braided line can easily lead to a leak. Since the clamp’s pressure is not uniform around the circumference of the hose, it creates uneven compression points. This “high-low” pressure can prevent the hose’s inner core from forming a proper seal against the barb or fitting. This is especially true for braided PTFE hoses, which are less flexible than rubber and require a specialized fitting to compress the tube uniformly.

3. Is It Safe for High-Pressure Applications?

Absolutely not. For high-pressure systems like those found in fuel, oil, and brake lines, a worm-gear clamp is entirely insufficient. These applications demand a connection that can withstand hundreds or even thousands of PSI. A conventional hose clamp, even when tightened to its maximum, can’t provide the necessary retention force and sealing pressure. Using one in this context is a ticking time bomb and a severe safety hazard.

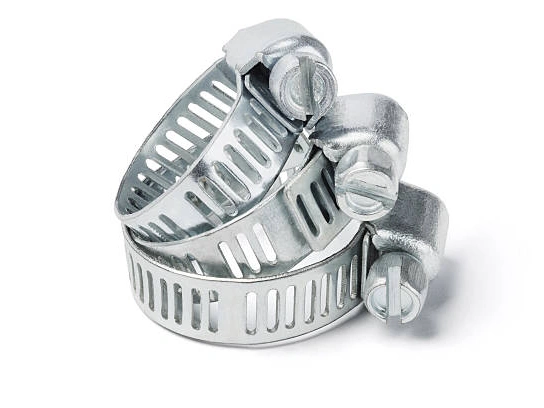

Can Hose Clamps Withstand Heat?

It’s important to know that hose clamps can withstand heat, but their effectiveness depends on the material they’re made from. Most standard hose clamps are stainless steel, which can handle temperatures well over a thousand degrees Fahrenheit, far exceeding the operating temperature of most automotive or industrial systems.

The rubber or silicone hose that the clamp is securing will fail long before the clamp itself does. The real temperature limit of a clamped connection is determined by the hose material, not the clamp. So, while the clamp can withstand the heat, the connection’s integrity is only as strong as its weakest link.

The Right Way: Proper Fittings for Braided Line

For braided hoses, the correct solution is to use a fitting specifically designed for them. These fittings are engineered to create a secure, leak-proof seal by engaging with the hose’s unique construction. We’ve compiled a table comparing the most common and effective options.

Common Fitting Types for Braided Hoses

How Do You Properly Install a Braided Line Fitting?

Proper installation is just as important as choosing the right fitting. A botched installation, even with the correct parts, can lead to a leak. We recommend following these general steps, though you should always refer to the specific manufacturer’s instructions for your particular hose and fittings.

Leak Check: After installation, it’s crucial to perform a leak check, especially for fuel or brake lines. Pressurize the system and carefully inspect all connections for any signs of weeping or fluid loss.

Cut the Hose: Use a specialized braided hose cutter or a cut-off wheel to get a clean, square cut. An uneven cut can prevent the hose from seating correctly inside the fitting.

Tape the Braiding: Before cutting, wrap a piece of electrical tape around the hose where you’ll cut. This prevents the braided reinforcement from fraying and making installation difficult.

Assemble the Fitting: Follow the manufacturer’s specific assembly instructions. For AN fittings, you’ll typically screw the hose into the socket and then tighten the assembly with a wrench. For crimp-on fittings, you’ll use a hydraulic crimping tool to secure the fitting.

Key Takeaways for Braided Hose Clamps

• Avoid standard worm-gear hose clamps on high-pressure braided lines.
• Choose the right fitting for your application: Push-Lock, Crimp-On, or AN fittings.
• Proper installation is crucial for a leak-free and safe connection.
• For aesthetics, use a line clamp or P-clamp to secure the hose without compromising the seal.

Conclusion

By understanding these principles, you can ensure your braided lines are installed correctly, providing a durable, reliable, and safe fluid transfer system for years to come.
