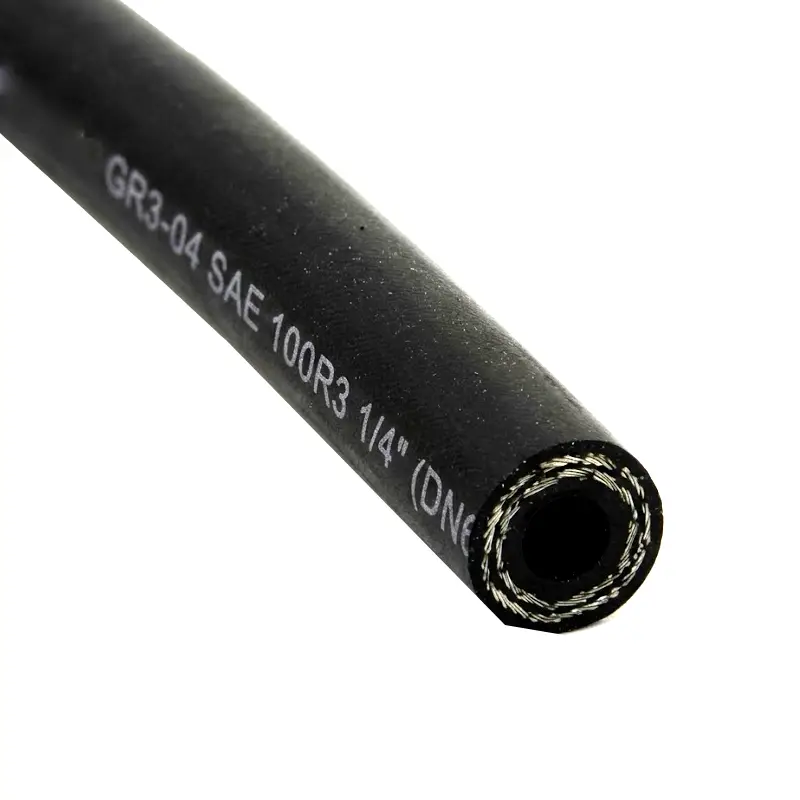

R3 Hydraulic Hose
The R3 hydraulic hose is a highly flexible and lightweight component, specifically designed for low-pressure hydraulic and return line applications. Conforming to SAE 100R3 standards, it features two textile braids, offering excellent flexibility without compromising on strength for its intended use. This hose is ideal for transferring petroleum-based hydraulic fluids, water, and air in systems where high-pressure resistance isn’t the primary requirement. From power steering lines to general industrial fluid transfer, R3 hydraulic hose provides a cost-effective and dependable solution, ensuring smooth and efficient operation in a variety of non-heavy-duty hydraulic circuits.
Get Your Desired R3 Hydraulic Hose
The world of R1 hydraulic hose is broader than just a single product; it encompasses various configurations tailored to specific needs while adhering to the core SAE 100R1 standard. This variety ensures that, regardless of the application’s unique demands—be it extreme temperatures, specific fluid compatibility, or unique installation challenges—there’s an R1 hydraulic hose designed to meet those requirements efficiently and reliably. Understanding these variations allows for optimal hose selection, leading to enhanced system performance, extended service life, and greater operational safety.
All R3 Hydraulic Hoses

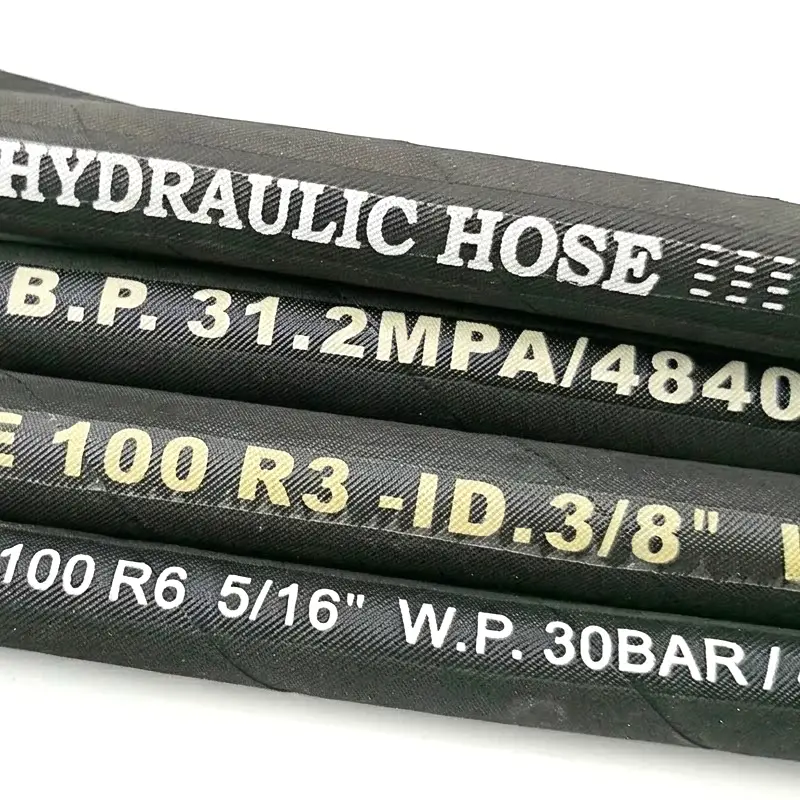

SAE 100 R3 hydraulic hose
SAE 100 R3 hydraulic hose is a lightweight and highly flexible solution for low-pressure hydraulic and return line applications. Unlike steel wire reinforced hoses, it features two textile braids, offering excellent bend radius and ease of installation. This hose is ideal for conveying petroleum-based hydraulic fluids, water, and air. Its construction prioritizes flexibility and cost-effectiveness, making it a popular choice in power steering systems, general industrial fluid transfer, and various non-heavy-duty hydraulic circuits where agility is key.

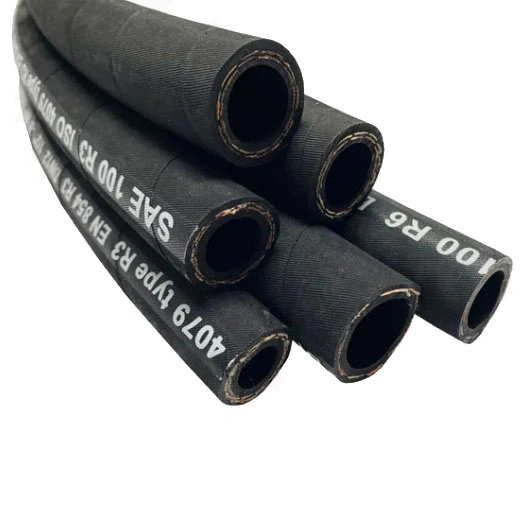

SAE 100 R3 Textile Reinforced Hydraulic Hose
The SAE 100 R3 textile reinforced hydraulic hose distinguishes itself by its unique reinforcement layer. Instead of steel wire, it incorporates two high-tensile textile braids, providing exceptional flexibility and a lighter weight. This construction is perfect for low-pressure hydraulic lines, return lines, and air applications where a tight bend radius is crucial. The textile reinforcement contributes to the hose’s excellent fatigue resistance from constant flexing, ensuring reliable performance in dynamic environments such such as automotive power steering systems and low-pressure industrial transfer lines.

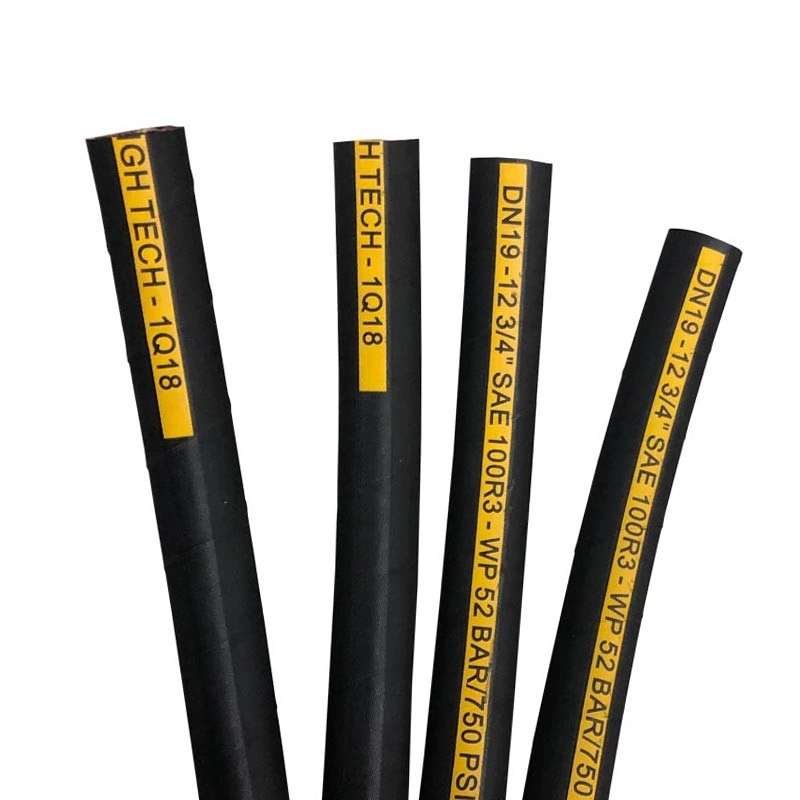

Low Pressure Hydraulic Hose 100R3
Low Pressure Hydraulic Hose 100R3 is specifically designed for applications where high pressure is not a factor, but flexibility and efficiency are paramount. Conforming to SAE 100R3 standards, it features textile braid reinforcement, making it significantly more flexible and lighter than steel-reinforced hoses. This hose is ideal for return lines, drain lines, and general fluid transfer in systems operating at lower pressures. Its cost-effectiveness and ease of routing make it a preferred choice for various non-heavy-duty industrial and automotive hydraulic circuits.

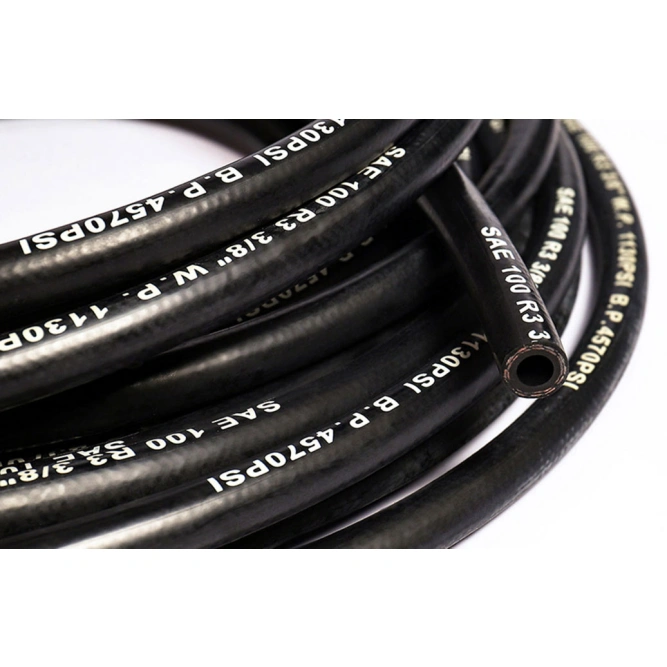

Custom OEM Service 100 R3 Hydraulic Hose
OEM Service 100 R3 hydraulic hose refers to hoses supplied directly to Original Equipment Manufacturers for integration into their machinery during the manufacturing process. These hoses are often customized to exact specifications for specific equipment models, including precise lengths, specialized fittings, and sometimes unique branding. Utilizing OEM Service 100 R3 hydraulic hose ensures perfect fit, optimal performance, and compatibility with the manufacturer’s design, contributing to the overall quality and reliability of the final product, especially in applications requiring high flexibility.

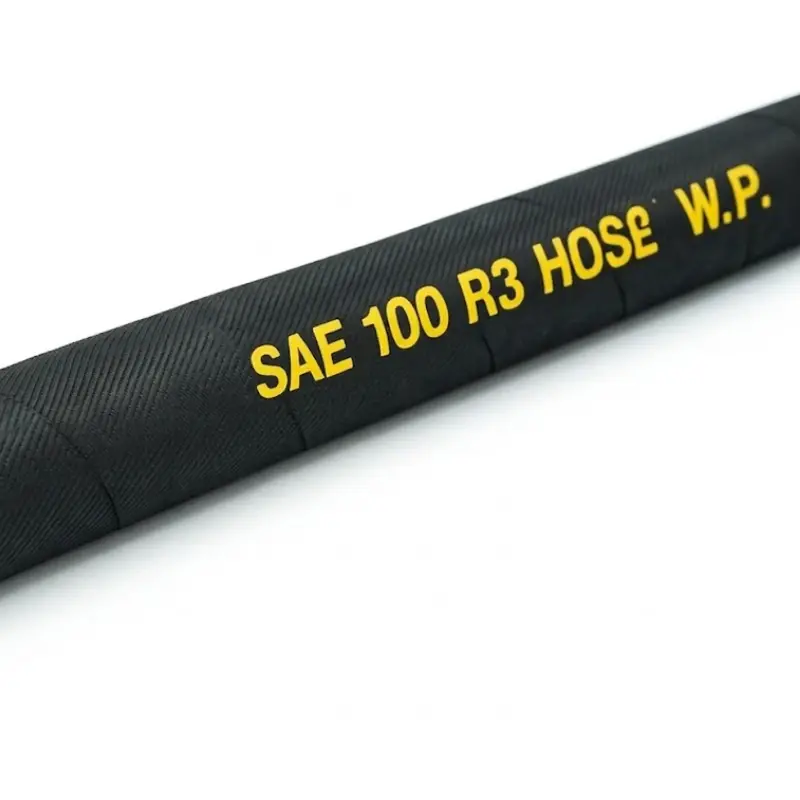

Flexible 100 R3 Hydraulic Hose
A flexible 100 R3 hydraulic hose is renowned for its exceptional pliability, a direct result of its textile braid reinforcement. This design allows for a significantly tighter bend radius compared to steel wire braided hoses, simplifying installation in confined spaces and complex routing paths. This inherent flexibility reduces stress on fittings and minimizes the risk of kinking, ensuring uninterrupted fluid flow. It’s an ideal choice for low-pressure applications requiring dynamic movement or intricate system layouts, offering reliable performance without compromising maneuverability.
Custom R3 Hydraulic Hose Wholesale
Construction and Design
The R3 hydraulic hose is characterized by its lightweight yet durable construction. It typically features an oil-resistant synthetic rubber inner tube, reinforced with two textile braids, and an outer cover that resists abrasion and environmental factors. This design prioritizes flexibility, making it easy to route in complex systems while ensuring reliable fluid transfer in low to medium-pressure applications.
Application Spectrum
The R3 hydraulic hose boasts a broad application spectrum, particularly in low-pressure settings. It’s widely used for return lines, power steering lines in vehicles, air brake systems, and general industrial fluid transfer. Its versatility extends to agricultural machinery, material handling equipment, and various non-heavy-duty hydraulic circuits, offering a reliable and cost-effective solution for diverse operational needs.
Flexibility and Routing Capabilities
A standout feature of R3 hydraulic hose is its exceptional flexibility. The textile braid reinforcement allows for a very tight bend radius, making it ideal for installations in confined spaces or systems with dynamic movements. This flexibility simplifies routing, reduces installation time, and minimizes stress on fittings, contributing to the overall longevity and reliability of the hydraulic system.
Cost-Effectiveness and Weight Advantages
R3 hydraulic hose provides significant cost-effectiveness due to its simpler textile reinforcement compared to steel wire braided hoses. Its lighter weight also reduces the overall system weight, which can be advantageous in mobile applications where weight savings contribute to fuel efficiency. These economic benefits, combined with its reliable performance, make R3 a preferred choice for many low-pressure hydraulic requirements.
What is R3 hydraulic hose primarily used for?
R3 hydraulic hose is primarily used for low-pressure hydraulic applications and return lines. It’s designed to efficiently convey hydraulic fluids, air, and water-based solutions in systems where high working pressures are not a factor.
Common applications include power steering lines, general industrial fluid transfer, and various auxiliary lines in machinery. Its flexibility and lightweight nature make it ideal for these less demanding hydraulic circuits.
What does "R3" signify in hydraulic hose standards?
“R3” signifies that the hydraulic hose conforms to the SAE 100R3 standard. This specification denotes a hose with two layers of textile braid reinforcement. This textile construction provides excellent flexibility and lighter weight, distinguishing it from steel wire reinforced hoses.
Adhering to the SAE 100R3 standard ensures the hose meets industry benchmarks for performance and safety in low-pressure hydraulic systems.
How does R3 hose compare to R1 or R2 hydraulic hose?
R3 hydraulic hose is designed for low-pressure applications with textile braid reinforcement, prioritizing flexibility and lighter weight. In contrast, R1 (single wire braid) is for medium pressure, and R2 (two wire braid) is for high pressure, both using steel wire for reinforcement.
The key difference lies in their pressure capabilities and construction. R3 offers superior flexibility and cost-effectiveness for low-pressure needs, while R1 and R2 are built for progressively higher pressure demands.
Why is R3 hydraulic hose considered flexible?
R3 hydraulic hose is considered highly flexible due to its two layers of textile braid reinforcement instead of rigid steel wire. Textile braids allow the hose to bend and flex more easily with a smaller bend radius.
This inherent flexibility simplifies installation in confined spaces and allows the hose to accommodate dynamic movements without kinking or stressing the connections. It’s a key advantage for many low-pressure, mobile applications.
How do I choose the right hydraulic hose for my application?
Choosing the right hydraulic hose involves considering several critical factors, often remembered by the acronym STAMPED: Size (inner diameter, length), Temperature (of fluid and environment), Application (what it’s used for), Media (type of fluid), Pressure (working and burst), Ends (fittings), and Delivery (volume/flow rate). Properly evaluating these aspects ensures the hose meets the system’s demands safely and efficiently.
Failing to select a hose that matches these specifications can lead to premature wear, leaks, or even catastrophic failure. Consulting manufacturer specifications and industry standards like SAE is essential for making
What are the common signs of hydraulic hose failure?
Common signs of hydraulic hose failure include visible external damage like abrasion, cuts, cracks, or blistering on the outer cover. Other indicators are a leaking hose (even small drips), which suggests the hose’s integrity is compromised, or a hardened, stiff, or unusually soft/spongy hose, indicating material degradation due to heat or chemical exposure.
Internal damage, though less visible, can manifest as a loss of hydraulic system power or erratic operation due to blockages or internal tube collapse. Regularly inspecting your hydraulic hoses for these signs can prevent unexpected downtime, costly repairs, and potential safety hazards.
Quote R3 Hydraulic Hose Wholesale
Is your project held back by unsuitable hydraulic hoses? Don’t compromise on performance or struggle with ill-fitting components. We offer 3/16 hydraulic hose wholesale, custom-tailored to your exact specifications. Get precise lengths, ideal pressure ratings, and the perfect fittings for seamless integration, ensuring your systems operate with maximum efficiency and reliability, every time.
