JIC Hydraulic Hose
Frustrated by leaky, unreliable hydraulic connections? Our JIC Hydraulic Hoses eliminate those frustrating fluid losses and system failures. Engineered for a perfect, leak-proof seal and superior durability, our hoses ensure your machinery runs efficiently, keeping your operations smooth and productive.
Get Your Desired JIC Hydraulic Hose
Struggling with ill-fitting hydraulic hoses? Our JIC hydraulic hoses eliminate the frustration of leaks and downtime, ensuring a perfect, secure connection every time. We deliver the precise fit and robust performance your machinery demands, getting you back to work faster with reliable, leak-free operation.
All JIC Hydraulic Hoses

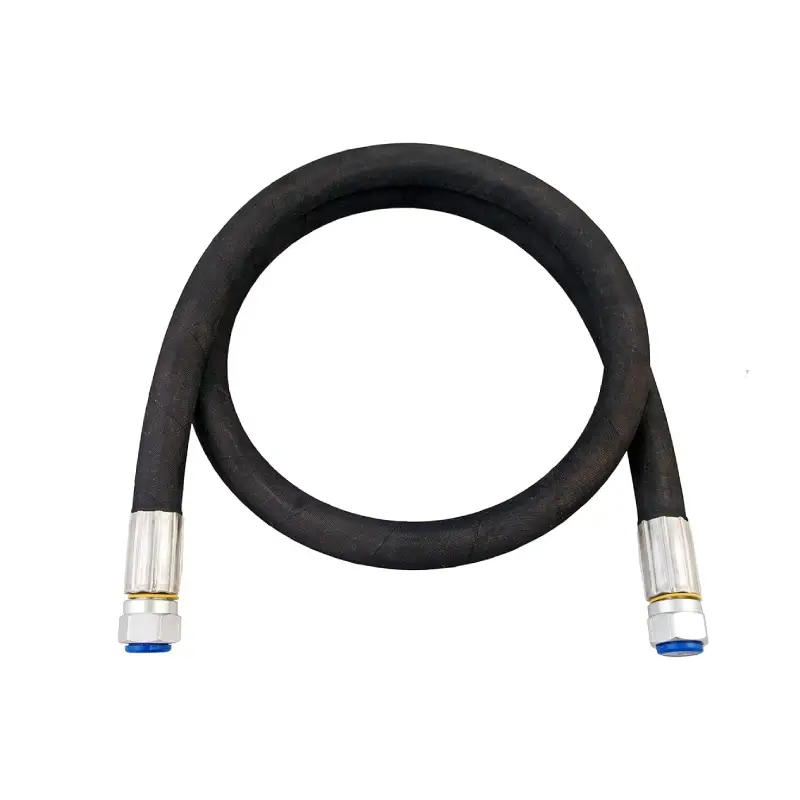

JIC hydraulic hoses
Tired of constant hydraulic leaks and system downtime? Our JIC hydraulic hoses are engineered to eliminate these frustrations. With precision-machined fittings and robust construction, we provide a leak-proof, high-performance solution that keeps your machinery running smoothly, ensuring maximum productivity and peace of mind.

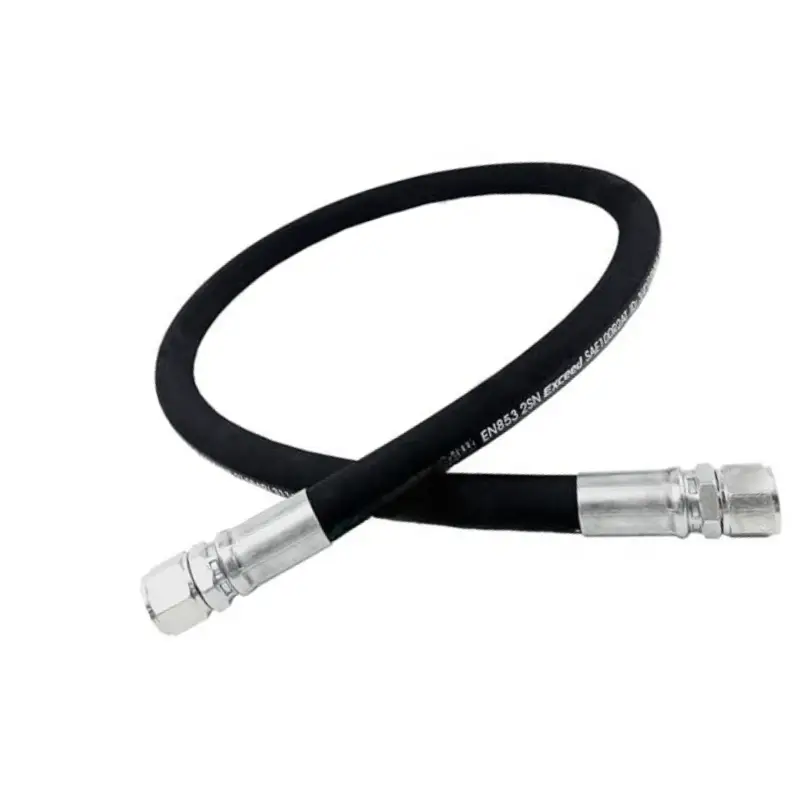

1/4 JIC Hydraulic Hose
Struggling with undersized or incompatible hydraulic lines? Our 1/4 JIC Hydraulic Hoses eliminate flow restrictions and connection headaches. We provide a precise, high-performance solution, ensuring optimal pressure delivery and leak-free operation for your compact systems, keeping your equipment running smoothly and reliably.

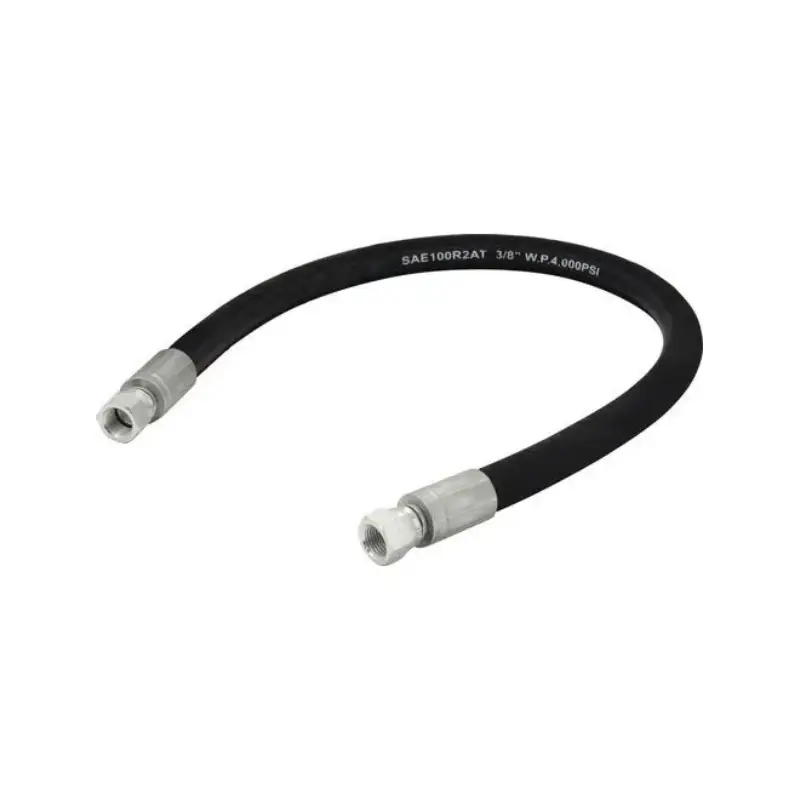

3/8 JIC Hydraulic Hose
Struggling with ill-fitting hoses causing system pressure drops? Our 3/8 JIC Hydraulic Hoses deliver precise, leak-free connections every time, optimizing your fluid power. Experience consistent flow and superior reliability, ensuring your equipment operates at peak performance without costly interruptions.

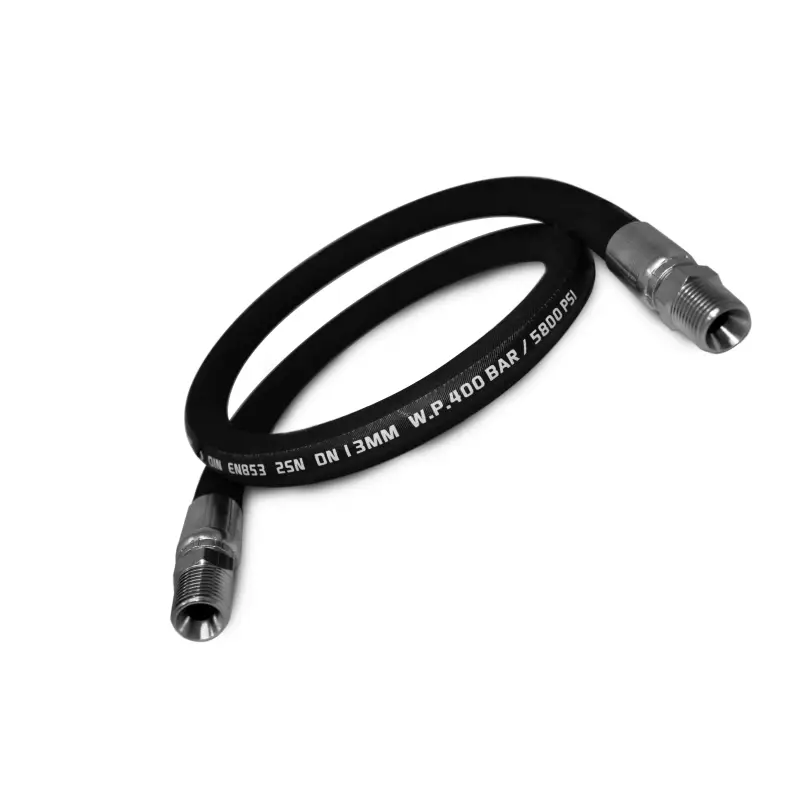

1/2 JIC Hydraulic Hose
Tired of inefficient hydraulic lines impacting your equipment’s performance? We provide 1/2 JIC Hydraulic Hoses eliminate power losses and frustrating downtime. We provide a perfect, high-integrity connection, guaranteeing optimal pressure and consistent fluid transfer for your critical operations.
Custom JIC Hydraulic Hose Wholesale
Precise Length and Diameter Matching
We offer exact customization of hose length, ensuring your JIC assemblies fit perfectly without excess slack or dangerous tension. We also provide various internal diameters (ID) to match your system’s specific flow rate requirements, optimizing hydraulic efficiency and preventing pressure drops.
Specialized End Orientations and Angles
Beyond standard straight fittings, we can customize JIC hoses with various angled fittings (e.g., 45-degree, 90-degree) and specialized orientations. This ensures optimal routing and easy installation, even in confined spaces, preventing kinks and extending hydraulic hose life.
Diverse Pressure Ratings and Materials
We customize JIC hoses to meet specific pressure demands, from low-pressure return lines to high-pressure power transfer. Our selection includes different reinforcement layers and outer cover materials, allowing us to build hoses that withstand harsh environments and specific fluid types.
Application-Specific Protective Sleeves
For environments prone to abrasion, heat, or chemical exposure, we offer the addition of custom protective sleeves. These sleeves enhance the durability and safety of your JIC hydraulic hoses, safeguarding them against external damage and prolonging their service life in challenging conditions.
what are JIC hydraulic hoses?
What Does JIC Stand for in Hydraulics?
JIC (Joint Industry Council) hydraulic hoses are complete hose assemblies featuring fittings that conform to the SAE J514 standard, characterized by a distinctive 37-degree flare seating surface.
This flare creates a metal-to-metal seal when the male and female components are tightened, ensuring a robust and leak-free connection crucial for high-pressure hydraulic applications.
Widely used in North America across industries like construction, agriculture, and manufacturing, JIC hoses are valued for their reliability, ease of assembly and disassembly, and consistent performance, making them a popular choice for fluid power systems.
How to tell if JIC or SAE?
Distinguishing between JIC (Joint Industry Council) and SAE (Society of Automotive Engineers) flare fittings, particularly the SAE 45-degree flare, is crucial for proper hydraulic system assembly and preventing leaks.
The primary difference lies in their flare angle: JIC fittings feature a 37-degree flare, while the common SAE fittings used in automotive and refrigeration applications have a 45-degree flare. This seemingly small angular difference is critical; attempting to connect a 37-degree flare to a 45-degree flare will result in an improper seal, leading to leaks and potential system failure.
To accurately identify whether you have a JIC or SAE fitting, the most reliable method is to use a flare gauge or protractor to measure the angle of the sealing surface.
Visually, a 37-degree JIC flare will appear slightly “sharper” or less steep than a 45-degree SAE flare. While some JIC and SAE fittings might share similar thread sizes, relying solely on thread measurements can be misleading.
Always verify the flare angle to ensure compatibility and a secure, leak-free connection, as intermixing these fittings can lead to significant operational issues and safety hazards in high-pressure hydraulic systems.
how to Use JIC Hydraulic Hoses?
Properly using JIC hydraulic hoses involves a systematic approach to ensure secure, leak-free connections and optimal system performance. Adhering to these steps prevents common issues like leaks and premature hose failure, safeguarding your equipment and operations.
Step 1: Inspect Components
Before installation, meticulously inspect both the JIC hydraulic hose assembly and the mating ports for any damage, debris, or contamination. Ensure the threads are clean and free from burrs, and that the flare seating surfaces are smooth and pristine to guarantee a proper seal.
Step 2: Align and Hand-Tighten
Carefully align the male JIC fitting with the female port, ensuring the flare surfaces meet squarely. Begin threading by hand, rotating the nut until it’s finger-tight. This prevents cross-threading, which can permanently damage the threads and compromise the integrity of the connection, leading to leaks.
Step 3: Wrench Tighten to Specified Torque
Once hand-tight, use a wrench to tighten the connection to the manufacturer’s recommended torque specifications. Over-tightening can deform the flare, while under-tightening will result in leaks. Using a torque wrench is ideal to achieve the precise force needed for a secure, leak-free seal without damaging component.
Step 4: Perform System Test and Check for Leaks
After installation, pressurize the hydraulic system and thoroughly inspect all JIC connections for any signs of leaks. Look for fluid weeping or drips around the fittings. If leaks are detected, depressurize the system and re-tighten the affected connection to the specified torque, then re-test.
what are JIC hydraulic hoses used for?
JIC hydraulic hoses are widely utilized in various fluid power applications due to their robust metal-to-metal sealing mechanism and reliability in high-pressure environments. Their standardized 37-degree flare connection makes them a popular choice across numerous industries where leak-free and secure hydraulic connections are paramount.
They are particularly favored for their ease of assembly and disassembly, which simplifies maintenance and repairs in the field.
Common applications for JIC hydraulic hoses include:
- Construction Equipment: Essential for heavy machinery like excavators, bulldozers, cranes, and loaders, where they handle high pressures and demanding operational conditions.
- Agricultural Machinery: Found in tractors, combines, sprayers, and other farm equipment, providing reliable fluid transfer for various hydraulic functions.
- Industrial Manufacturing: Used in factories and production lines to connect hydraulic components in machinery, automation systems, and presses, ensuring smooth and efficient operation.
- Automotive Industry: Employed in power steering systems, brakes, and other hydraulic components within vehicles.
- Marine Applications: Critical for hydraulic systems in boats and ships, including steering, winches, and stabilizers, often using corrosion-resistant materials like stainless steel.
Quote JIC Hydraulic Hose Wholesale
Experience unmatched reliability with Gushan Rubber’s JIC Hydraulic Hose Wholesale. We eliminate the uncertainty of generic components, providing precisely engineered hoses that ensure leak-free performance and superior durability for your critical applications. Choose Gushan Rubber for wholesale solutions that elevate your hydraulic system’s efficiency and longevity.
