3/16 Hydraulic Hose
Struggling with bulky hoses in tight spots? Our 3/16 hydraulic hose eliminates those frustrations, providing superior flexibility and a slim profile for even the most confined applications. Experience unmatched precision and reliable power, ensuring your intricate systems operate flawlessly and efficiently where standard hoses simply can’t.
Get Your Desired 3/16 Hydraulic Hose
Need a hose for those incredibly tight spaces? Don’t let bulky alternatives limit your design or performance. Our 3/16 hydraulic hose is engineered for precision, offering the slimmest profile and exceptional flexibility. Get the exact fit and reliable power you need for intricate applications, ensuring your systems operate flawlessly and efficiently even where space is at an absolute premium.
All 3/16 Hydraulic Hoses
3/16 hydraulic hose custom
Need a 3/16 hydraulic hose tailored to your exact specifications? Don’t compromise on fit or performance with off-the-shelf options. We provide custom solutions, fabricating hoses to your precise length, fitting type, and pressure requirements. Get the perfect hose for your unique application, ensuring optimal system performance and reliability, even in the most demanding environments.
3/16" ID SAE 100R5 3000psi hydraulic hose
Our 3/16″ ID SAE 100R5 hydraulic hose is engineered for demanding medium-pressure applications, offering a robust 3000psi working pressure. Featuring a textile outer cover and a single wire braid reinforcement, it’s ideal for compact spaces and various fluids including petroleum-based hydraulic oils, air, and water. This versatile hose ensures reliable performance across diverse industrial and mobile systems.

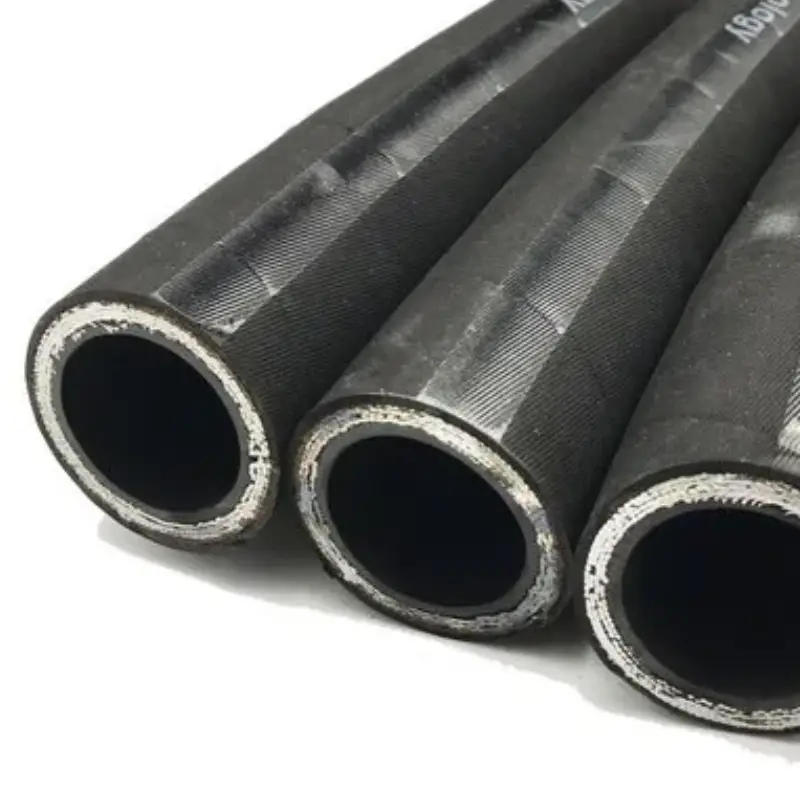

3/16" CPVC hydraulic hose
We offer 3/16″ CPVC hydraulic hoses designed for high-pressure fluid transfer in a variety of industrial applications. Made with durable CPVC material, our hoses provide excellent resistance to heat, chemicals, and pressure. Ideal for hydraulic systems requiring corrosion resistance and flexibility, our 3/16″ CPVC hoses ensure reliable performance and long-lasting durability.
thermoplastic 3 16 hydraulic hose
We specialize in providing 3/16 thermoplastic hydraulic hose, offering a lightweight and flexible solution for various applications. Ideal for tight routing, high-pressure environments, and non-conductive needs, our thermoplastic hoses deliver excellent chemical resistance and a smooth bore for efficient fluid flow. We supply this compact and robust hose to meet your specific project demands.
high pressure 3/16 hydraulic hoses
We offer high-pressure 3/16 hydraulic hoses designed for demanding applications. Made from durable materials, our hoses provide excellent resistance to abrasion, heat, and chemicals. Perfect for industrial, agricultural, and construction systems, our high-pressure 3/16 hydraulic hoses ensure reliable fluid transfer, optimal performance, and safety in high-pressure environments.
3/16 SAE 100R7 hydraulic hoses
We offer 3/16 SAE 100R7 hydraulic hoses, designed for medium-pressure hydraulic systems. Made with a thermoplastic inner tube and reinforced with synthetic fibers, these hoses provide excellent flexibility, resistance to abrasion, and high chemical compatibility. Ideal for light-duty industrial, agricultural, and automotive applications, our 3/16 SAE 100R7 hoses ensure reliable performance.
Custom 3/16 Hydraulic Hose Wholesale
Material Selection
We offer various PVC formulations, including FDA-compliant and non-toxic options for food or medical applications. Depending on your system’s needs, we can select the right material for chemical resistance, UV stability, or transparency, ensuring the hose performs reliably and safely for long periods in your environment.
Diameter and Length
We provide custom sizes for both diameter and length, ensuring that your clear PVC hose fits your application perfectly. Whether you need a longer hose for greater reach or a specific diameter to fit your equipment, we can provide the right size for seamless installation and reliable fluid flow.
Pressure Rating
We tailor the pressure rating of your clear PVC hoses to suit the demands of your system. Whether you need a low-pressure hose for gentle fluid transfer or a higher-rated hose for pressurized systems, we ensure the hose can withstand the necessary pressure without failure, optimizing your system’s efficiency.
Reinforcement and Flexibility
We customize the reinforcement and flexibility of your clear PVC hoses to suit your needs. Whether you need a more rigid hose for fixed systems or a flexible option for tight spaces and maneuverability, we offer reinforcements like braided fibers to enhance strength while maintaining flexibility and ease of use.
What is the standard hydraulic hose size?
While there isn’t one single “standard” hydraulic hose size that applies to every application, hydraulic hose sizes are primarily determined by their inside diameter (ID), which is crucial for fluid flow and pressure.
These IDs are commonly expressed in increments of 1/16th of an inch, using what’s known as “dash sizes” (e.g., a -6 hose has a 6/16″ or 3/8″ ID).
Common sizes range from 1/4 inch up to 2 inches, with 3/8 inch and 1/2 inch being particularly prevalent in many industrial and mobile hydraulic systems.
The specific size chosen depends heavily on factors like the system’s flow rate, required pressure, and the physical space available for routing the hose.
how to measure hydraulic hose sizes?
Measuring hydraulic hose sizes accurately is essential for ensuring compatibility with fittings and system components. Properly sized hoses prevent leaks, improve system efficiency, and extend the hose’s lifespan.
Here’s a step-by-step guide to measuring hydraulic hose sizes:
- Measure Inner Diameter (ID): The inner diameter is the key measurement for fluid flow, to measure the inner diameter, use a caliper or ruler to measure the distance across the inside of the hose, ensuring the correct flow rate for your system and preventing inefficiency or damage due to restricted fluid movement.
- Measure Outer Diameter (OD): The outer diameter ensures compatibility with the fittings, measured across the outside surface of the hose, including any reinforcement layers, to determine if the hose will fit into your hydraulic system’s fittings, preventing leaks or difficulties during installation and ensuring a secure, leak-free connection.
- Determine Hose Length: Hose length is important for installation and fluid flow, measure the hose’s total length from one end to the other, excluding fittings, ensuring it’s long enough to reach between system components without slack that could lead to damage, kinks, or reduced fluid efficiency during operation.
- Check Hose Pressure Rating: The pressure rating ensures the hose withstands system pressure, identify the working pressure rating of the hose to ensure it can handle the maximum pressure of your system, preventing hose failure under high-pressure conditions and guaranteeing that the hose can safely operate within your system’s pressure range.
- Verify Fitting Compatibility: Ensure hose fittings match your system components, measure the fittings’ sizes such as thread type, diameter, and shape to ensure compatibility with the hose and hydraulic system components, preventing leaks, ensuring a secure connection, and maintaining optimal hydraulic system performance.
What is the difference between SAE 100R16 and 100R17?
SAE 100R16 and SAE 100R17 are both compact hydraulic hoses designed for applications requiring smaller bend radii and lighter weight than traditional SAE 100R1 (single wire braid) or 100R2 (two wire braid) hoses. However, their primary differences lie in their pressure ratings and reinforcement:
- Typically features one or two wire braids for reinforcement.
- Has varying working pressure ratings depending on the hose size, generally offering higher pressures for smaller diameters and decreasing for larger ones.
- Designed for high-pressure applications where a compact design and good flexibility are critical.
- Often features one wire braid for smaller sizes and two wire braids for larger sizes.
- Maintains a constant working pressure of 3000 psi across all sizes up to 1-inch ID, simplifying system design.
- Also designed for high-pressure applications with a focus on compactness and flexibility, similar to R16 but with a consistent pressure rating.
What is the most common hydraulic hose?
The most common type of hydraulic hose is generally considered to be rubber hydraulic hoses with braided wire reinforcement, particularly those meeting SAE 100R1 and SAE 100R2 standards.
These hydraulic hoses offer a versatile balance of flexibility, durability, pressure resistance, and cost-effectiveness, making them suitable for a vast array of medium to high-pressure applications across various industries.
Key reasons for their commonality include:
Versatility: They are compatible with a wide range of hydraulic fluids.
Pressure Range: Available in configurations for moderate to high pressures, with SAE 100R1 (single wire braid) for medium pressure and SAE 100R2 (double wire braid) for higher pressures.
Flexibility: The rubber inner tube and braided reinforcement provide good flexibility for routing in diverse machinery.
Durability: The rubber outer cover offers resistance to abrasion, oil, and weather conditions.
Cost-Effectiveness: Generally more affordable than specialized hose types like thermoplastic or PTFE hoses.
Quote 3/16 Hydraulic Hose Wholesale
We offer 3/16 hydraulic hoses designed for medium-pressure applications. These hydraulic hoses are made with durable materials that provide excellent resistance to abrasion, heat, and chemicals. Ideal for use in automotive, agricultural, and industrial systems, our 3/16 hydraulic hoses ensure reliable fluid transfer and consistent performance in demanding environments.
