R9 Hydraulic Hose
The R9 hydraulic hose is the preferred choice for high-pressure hydraulic applications, meeting the stringent SAE 100R9 standard. Engineered for exceptional durability and performance, its construction utilizes multiple layers of spiral steel wire reinforcement, distinguishing it from braided hoses. This robust design enables the R9 hose to withstand extreme pressure shocks and harsh operating conditions, making it an essential component for heavy-duty machinery in the construction, mining, and agricultural sectors.
Get Your Desired R9 Hydraulic Hose
We are china r9 hydraulic hose manufacturers.From construction excavators to large mining equipment, reliable R9 hydraulic hoses are essential to operational safety and efficiency. We delve into everything from construction to core applications to help you understand why this hydraulic hose is the industry’s top choice for durability and reliability.
All R9 Hydraulic Hoses

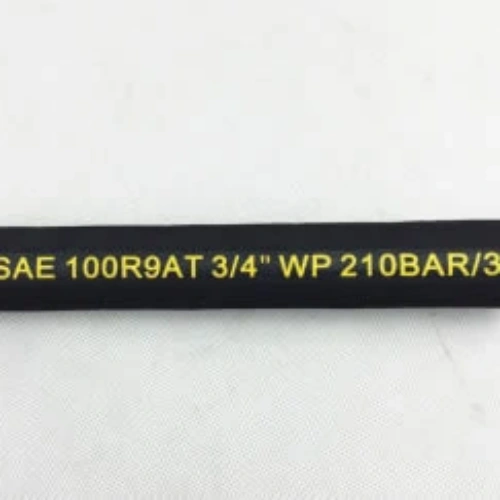

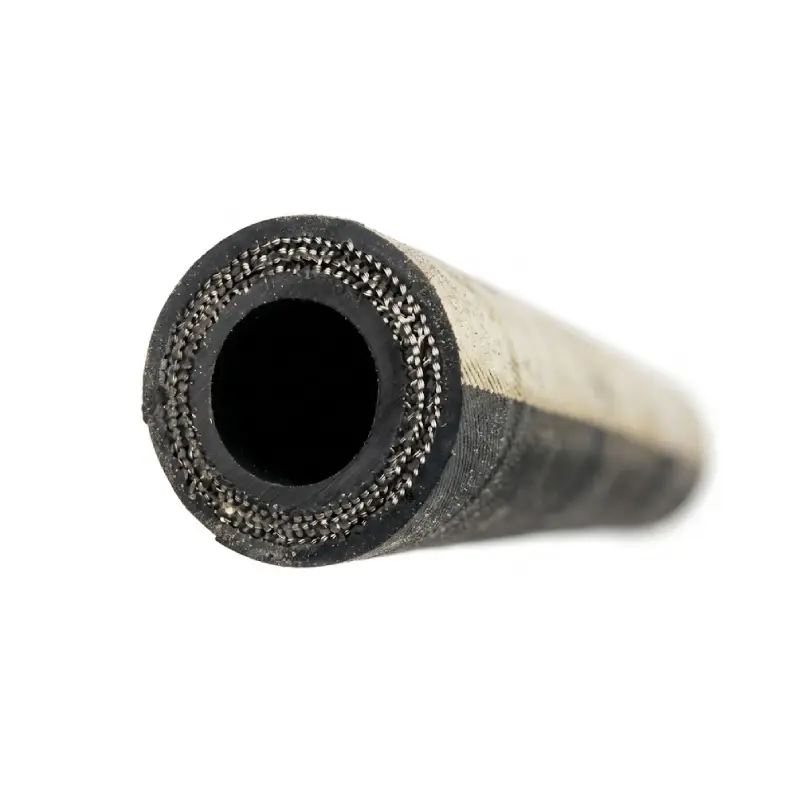

sae 100 r9 hydraulic hose
The SAE 100R9 hydraulic hose is a specific industry standard that guarantees exceptional quality and performance. When you see this designation, you know the hose features four spiral layers of high-tensile steel wire reinforcement, making it suitable for extremely high-pressure, high-impulse applications. The SAE 100R9 standard ensures the hose has been rigorously tested for burst pressure, temperature resistance, and dimensional consistency, providing a reliable and safe solution for heavy-duty construction, mining, and agricultural equipment.
1/2" R9 Hydraulic Hose
The 1/2″ R9 hydraulic hose is a workhorse in high-pressure systems, combining a common size with top-tier performance. Its half-inch inner diameter makes it highly versatile for a wide range of applications, from heavy machinery to industrial equipment. Built with four spiral layers of steel wire reinforcement, this 1/2″ R9 hose is engineered to handle intense pressure surges, ensuring reliability and safety. It’s the perfect choice for demanding jobs where a compact hose size is required without compromising on strength or durability.

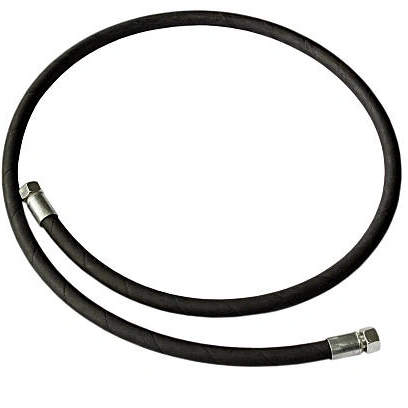

Flexible R9 Hydraulic Hose
Installing hydraulic lines in tight or complex machinery spaces can be a challenge. While the spiral-wire construction of R9 hoses makes them inherently more rigid than braided hoses, some manufacturers offer a flexible R9 Hydraulic Hose variant. This type of hose is designed with a smaller bend radius, allowing for easier routing in confined areas without compromising the high-pressure capabilities of the standard. This improved flexibility can save installation time and reduce the need for complex fitting arrangements.

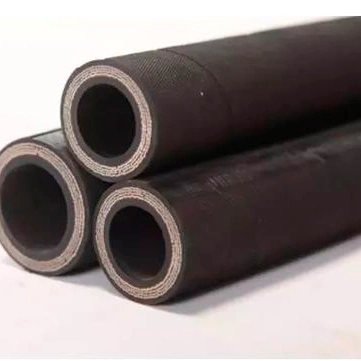

SAE 100 R9 Steel Wire Spiraled Hydraulic Hose
The SAE 100 R9 steel wire spiraled hydraulic hose is specifically engineered for demanding, high-pressure applications. Unlike braided hoses, its four layers of high-tensile steel wire are spiraled, a construction method that provides superior resistance to pressure surges and fatigue. This design ensures outstanding durability and a longer service life in harsh environments. The SAE 100 R9 standard guarantees this hose is a reliable and robust choice for heavy-duty machinery.

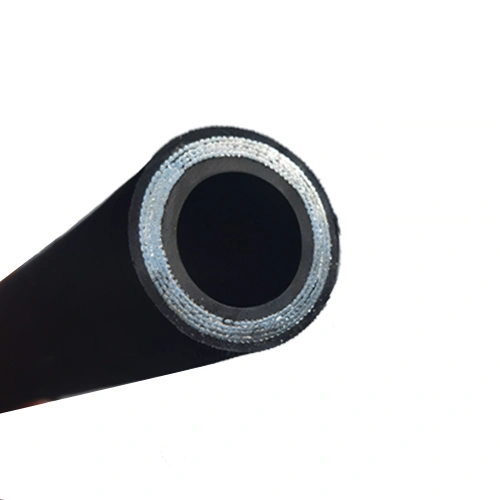

High-Temperature R9 Hydraulic Hose
Certain hydraulic systems operate at elevated temperatures, which can quickly degrade standard hose materials. A high-temperature R9 Hydraulic Hose is engineered with a specialized inner tube and outer cover that can handle fluids up to 250°F or even higher. This type of hose is crucial for applications in foundries, engine bays, or any environment where heat is a major factor. The high-temperature rating ensures that the hose maintains its integrity, preventing premature failure and fluid leaks.

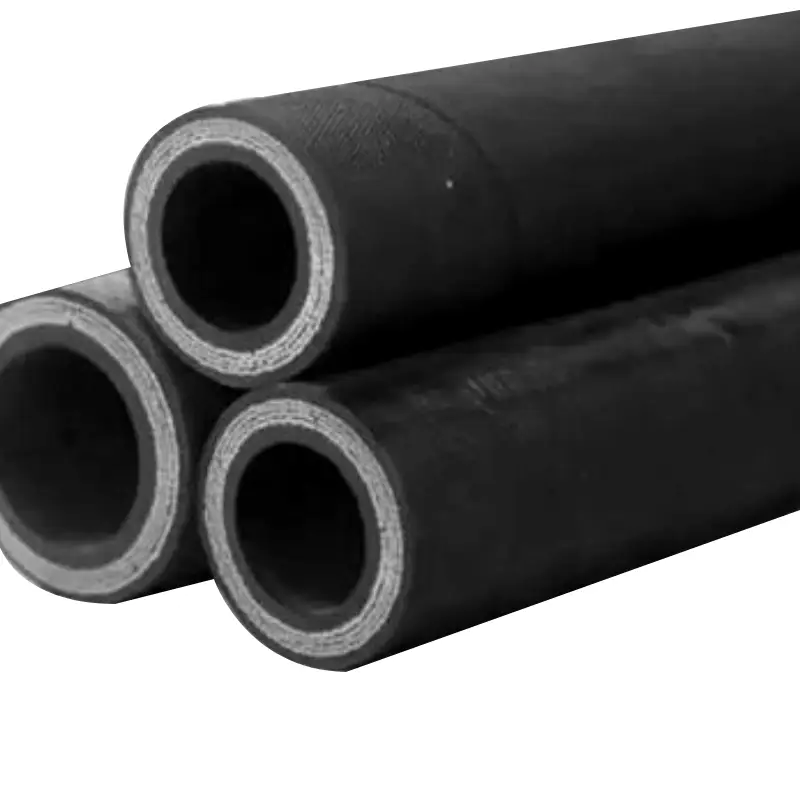

Abrasion Resistant R9 Hydraulic Hose
In environments like construction sites or mining operations, hoses are frequently exposed to rubbing, scraping, and impact from debris. An abrasion-resistant R9 Hydraulic Hose features a rugged, thick outer cover that significantly extends its service life. This cover, often made from a highly durable synthetic rubber or thermoplastic, protects the internal spiral wire reinforcement from damage. It’s an ideal choice for hoses that are routinely dragged or installed in tight spaces where contact with other components is unavoidable.

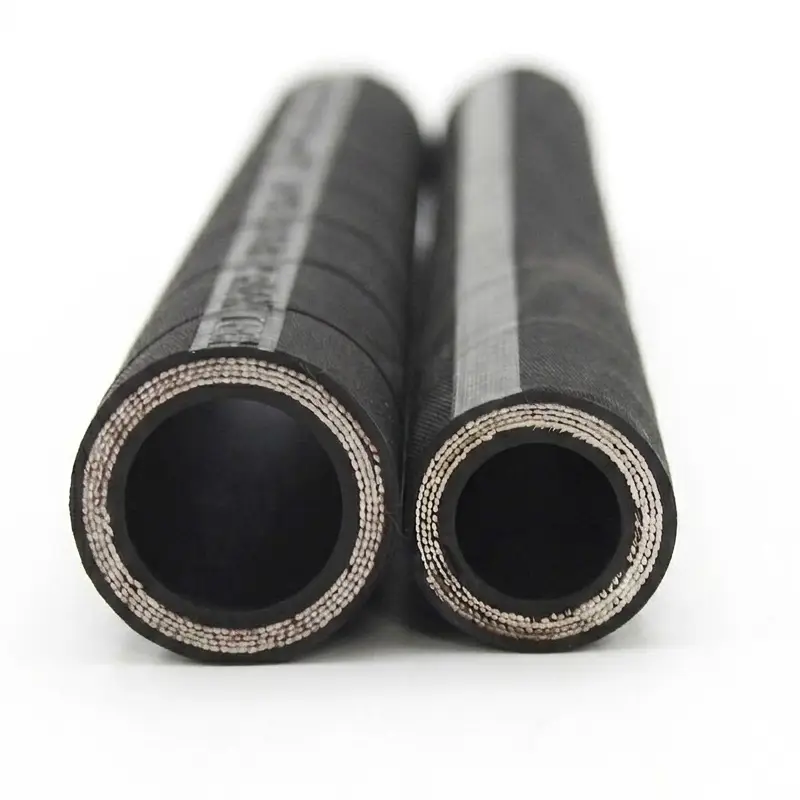

Custom R9 Hydraulic Hose Wholesale
Construction and Reinforcement
The R9 Hydraulic Hose is defined by its superior internal construction. Unlike lighter-duty hoses that use braided wire, the R9 series utilizes four layers of high-tensile steel spiral wire. This spiral reinforcement is strategically designed to provide exceptional resistance to high pressures and impulse cycles, which are common in heavy machinery. This core engineering detail is what gives the R9 hose its remarkable strength and sets it apart in the industry.
Key Applications and Industries
Due to its high-pressure capacity and durable construction, the R9 Hydraulic Hose is the preferred choice across a range of heavy-duty industries. You’ll find it on large-scale construction equipment like excavators and bulldozers, in mining operations on drill rigs, and in agricultural machinery that requires powerful hydraulic systems. Its ability to withstand harsh conditions and intense pressure makes it a vital safety and performance component.
Pressure and Performance Ratings
One of the most critical features of the R9 Hydraulic Hose is its high-pressure rating. Certified to meet or exceed the SAE 100R9 standard, this hose is built to handle pressures that would destroy other hoses. Its robust design allows it to operate reliably in systems with working pressures up to 4,500 PSI, depending on the hose size. This makes it an indispensable component for applications where power and force are paramount.
Adherence to SAE Standards
The SAE 100R9 standard is a crucial benchmark for the R9 Hydraulic Hose. This specification ensures that the hose meets strict requirements for pressure, temperature range, and dimensional tolerances. When you purchase a product that complies with this standard, you are guaranteed a high level of quality, consistency, and safety. This adherence to industry standards provides peace of mind that the hose will perform as expected in critical operations.
What is an R9 Hydraulic Hose?
An R9 Hydraulic Hose is a high-pressure hydraulic hose that meets the SAE 100R9 standard. It is primarily used in heavy-duty applications that require superior strength and durability.
The defining feature of this hose is its four-layer spiral wire reinforcement, which allows it to withstand extreme pressure surges and impulses far better than hoses with a braided wire design.
What is the main difference between R9 and R12 hoses?
The primary difference lies in their pressure ratings and construction. An R9 Hydraulic Hose uses four layers of spiral wire reinforcement for high pressure, while an R12 hose typically uses four or six layers, designed for even higher pressures and more demanding impulse cycles.
An R9 hose is a great choice for many heavy-duty applications, while the R12 is often reserved for the most extreme pressures and continuous flexing applications.
What are the typical applications of an R9 Hydraulic Hose?
R9 Hydraulic Hoses are used in a variety of heavy-duty applications where high pressure is a factor. Common uses include construction equipment like excavators, bulldozers, and cranes, as well as mining machinery and large agricultural equipment.
Its robust spiral wire construction makes it ideal for hydraulic systems that operate under constant stress, ensuring safety and performance in critical operations.
What is the maximum working pressure of an R9 hose?
The maximum working pressure for an R9 Hydraulic Hose varies depending on the inside diameter of the hose. Generally, a 3/4″ hose may be rated for 4,500 PSI, while a larger 1-1/4″ hose is rated for around 3,000 PSI.
It is crucial to always check the specific manufacturer’s specifications for the exact hose size you are using to ensure it is rated for your system’s pressure.
What are the common signs of hydraulic hose failure?
Common signs of hydraulic hose failure include visible external damage like abrasion, cuts, cracks, or blistering on the outer cover. Other indicators are a leaking hose (even small drips), which suggests the hose’s integrity is compromised, or a hardened, stiff, or unusually soft/spongy hose, indicating material degradation due to heat or chemical exposure.
Internal damage, though less visible, can manifest as a loss of hydraulic system power or erratic operation due to blockages or internal tube collapse. Regularly inspecting your hydraulic hoses for these signs can prevent unexpected downtime, costly repairs, and potential safety hazards.
Quote R9 Hydraulic Hose Wholesale
Is your project held back by unsuitable hydraulic hoses? Don’t compromise on performance or struggle with ill-fitting components. We offer 3/16 hydraulic hose wholesale, custom-tailored to your exact specifications. Get precise lengths, ideal pressure ratings, and the perfect fittings for seamless integration, ensuring your systems operate with maximum efficiency and reliability, every time.
