Professional Hydraulic Hose Manufacturer & Supplier
Gushan Rubber Factory Direct
At Gushan Rubber, we specialize in manufacturing durable, high-performance hydraulic hoses designed to meet the toughest industrial standards.
- Custom Hydraulic Hose Solutions with ISO-Certified Quality.
- Fast Delivery & Competitive Pricing
Hydraulic & High-Pressure Hose Products
SAE 100R1AT/ DIN EN853 1SN
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside | Working Pressure | |
| mm | inch | Dash | Min | Max | mm | Bar |
| 5 | 3/16″ | -3 | 4.6 | 5.4 | 12.5 | 250 |
| 6 | 1/4″ | -4 | 6.2 | 7.0 | 14.1 | 225 |
| 8 | 5/16″ | -5 | 7.7 | 8.5 | 15.7 | 215 |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 18.1 | 180 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 21.4 | 160 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 24.5 | 130 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 28.5 | 105 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 36.6 | 88 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 44.8 | 63 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 52.1 | 50 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 65.5 | 40 |
SAE 100R2AT / DIN EN853 2SN
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside | Working Pressure | |
| mm | inch | Dash | Min | Max | mm | Bar |
| 5 | 3/16″ | -3 | 4.6 | 5.4 | 14.1 | 415 |
| 6 | 1/4″ | -4 | 6.2 | 7.0 | 15.7 | 400 |
| 8 | 5/16″ | -5 | 7.7 | 8.5 | 17.3 | 350 |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 19.7 | 330 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 23.0 | 275 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 26.2 | 250 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 30.1 | 215 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 38.9 | 165 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 49.5 | 125 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 55.9 | 90 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 68.6 | 80 |
SAE 100R 1A / DIN EN853 1ST
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 5 | 3/16″ | -3 | 4.6 | 5.4 | 13.5 | 250 |
| 6 | 1/4″ | -4 | 6.2 | 7.0 | 16.7 | 225 |
| 8 | 5/16″ | -5 | 7.7 | 8.5 | 18.3 | 215 |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 20.6 | 180 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 23.8 | 160 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 27.0 | 130 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 31.0 | 105 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 39.1 | 88 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 47.6 | 63 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 54.0 | 50 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 68.3 | 40 |
SAE 100R 2A / DIN EN853 2ST
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 5 | 3/16″ | -3 | 4.6 | 5.4 | 16.7 | 415 |
| 6 | 1/4″ | -4 | 6.2 | 7.0 | 18.3 | 400 |
| 8 | 5/16″ | -5 | 7.7 | 8.5 | 19.9 | 350 |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 22.2 | 330 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 25.4 | 275 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 28.6 | 250 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 32.6 | 215 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 40.9 | 165 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 52.4 | 125 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 58.8 | 90 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 71.4 | 80 |
DIN EN856 4SP
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 6 | 1/4″ | -4 | 6.2 | 7.0 | 18.7 | 450 |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 22.2 | 445 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 25.4 | 415 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 29.0 | 350 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 33.0 | 350 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 40.9 | 280 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 52.4 | 210 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 58.8 | 185 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 71.4 | 165 |
DIN EN856 4SH
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 33.0 | 420 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 39.9 | 380 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 47.1 | 325 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 55.1 | 290 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 69.7 | 250 |
DIN EN857 1SC
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 6 | 1/4″ | -4 | 6.1 | 6.9 | 13.5 | 225 |
| 8 | 5/16″ | -5 | 7.7 | 8.5 | 14.5 | 215 |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 16.9 | 180 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 20.4 | 160 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 23.0 | 130 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 26.7 | 105 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 34.9 | 88 |
DIN EN857 2SC
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 6 | 1/4″ | -4 | 6.1 | 6.9 | 14.2 | 400 |
| 8 | 5/16″ | -5 | 7.7 | 8.5 | 16.0 | 350 |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 18.3 | 330 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 21.5 | 275 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 24.7 | 250 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 28.6 | 215 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 36.6 | 165 |
SAE 100R3
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 5 | 3/16″ | -3 | 4.5 | 5.4 | 13.5 | 105 |
| 6 | 1/4″ | -4 | 6.1 | 7.0 | 15.1 | 87 |
| 8 | 5/16″ | -5 | 7.6 | 8.5 | 18.3 | 84 |
| 10 | 3/8″ | -6 | 9.2 | 10.1 | 19.8 | 78 |
| 13 | 1/2″ | -8 | 12.4 | 13.5 | 24.6 | 70 |
| 16 | 5/8″ | -10 | 15.6 | 16.7 | 27.8 | 61 |
| 19 | 3/4” | -12 | 18.7 | 19.8 | 32.5 | 52 |
| 25 | 1″ | -16 | 25.1 | 26.2 | 39.3 | 39 |
SAE 100R4
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 19 | 3/4” | -12 | 18.2 | 19.8 | 34.9 | 21 |
| 25 | 1” | -16 | 24.6 | 26.2 | 41.3 | 17 |
| 32 | 1-1/4″ | -20 | 30.6 | 33.0 | 50.8 | 14 |
| 38 | 1-1/2″ | -24 | 36.9 | 39.3 | 57.2 | 10 |
| 51 | 2” | -32 | 49.2 | 52.4 | 69.9 | 7 |
| 63 | 2-1/2′ | -40 | 61.9 | 65.1 | 82.6 | 4 |
| 76 | 3” | -48 | 74.6 | 77.8 | 95.3 | 4 |
| 89 | 3-1/2′ | -56 | 87.3 | 90.5 | 107.9 | 3 |
| 102 | 4” | -64 | 101.0 | 102.2 | 120.7 | 2 |
SAE 100R5
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 5 | 3/16″ | -4 | 4.8 | 5.5 | 13.7 | 210 |
| 6 | 1/4″ | -5 | 6.4 | 7.2 | 15.3 | 210 |
| 8 | 5/16″ | -6 | 7.9 | 8.7 | 17.6 | 157 |
| 11 | 13/32” | -8 | 10.3 | 11.1 | 20.0 | 140 |
| 13 | 1/2″ | -10 | 12.7 | 13.7 | 24.0 | 122 |
| 16 | 5/8″ | -12 | 15.9 | 17.0 | 28.0 | 105 |
| 22 | 7/8″ | -16 | 22.2 | 23.3 | 32.2 | 56 |
| 29 | 1-1/8″ | -20 | 28.6 | 29.8 | 38.9 | 43 |
| 35 | 1-3/8″ | -24 | 34.9 | 36.1 | 45.2 | 35 |
| 46 | 1-13/16″ | -32 | 46.0 | 47.2 | 57.6 | 24 |
| 60 | 2-3/8″ | -40 | 60.3 | 61.9 | 74.2 | 24 |
| 76 | 3” | -48 | 76.2 | 77.8 | 91.7 | 14 |
SAE 100R6
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 5 | 3/16″ | -3 | 4.4 | 5.2 | 11.9 | 35 |
| 6 | 1/4″ | -4 | 5.9 | 6.9 | 13.5 | 28 |
| 8 | 5/16″ | -5 | 7.4 | 8.4 | 15.1 | 28 |
| 10 | 3/8″ | -6 | 9.0 | 10.0 | 16.7 | 28 |
| 13 | 1/2″ | -8 | 12.1 | 13.3 | 19.7 | 28 |
| 16 | 5/8″ | -10 | 15.3 | 16.5 | 23.8 | 24 |
| 19 | 3/4” | -12 | 18.2 | 19.8 | 27.8 | 21 |
| 25 | 1″ | -16 | 24.6 | 26.2 | 34.6 | 12 |
SAE 100R7
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside | Outside | Working Pressure |
| mm | inch | Dash | mm | mm | Bar |
| 3 | 1/8″ | -2 | 3.2 | 8.1 | 210 |
| 5 | 3/16” | -3 | 4.8 | 10.0 | 210 |
| 6 | 1/4” | -4 | 6.4 | 12.2 | 210 |
| 8 | 5/16” | -5 | 8.0 | 14.2 | 175 |
| 10 | 3/8″ | -6 | 9.6 | 16.0 | 155 |
| 13 | 1/2″ | -7 | 12.7 | 19.5 | 140 |
| 16 | 5/8″ | -10 | 16.0 | 23.0 | 105 |
| 19 | 3/4″ | -12 | 19.0 | 26.4 | 90 |
| 25 | 1″ | -16 | 25.4 | 33.5 | 70 |
SAE 100R8
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside | Outside | Working Pressure |
| mm | inch | Dash | mm | mm | Bar |
| 4 | 1/8″ | -2 | 3.2 | 8.6 | 362 |
| 5 | 3/16” | -3 | 4.8 | 10.0 | 362 |
| 6 | 1/4” | -4 | 6.4 | 12.2 | 362 |
| 8 | 5/16” | -5 | 8.0 | 14.2 | 350 |
| 10 | 3/8″ | -6 | 9.6 | 16.0 | 300 |
| 13 | 1/2″ | -7 | 12.7 | 19.5 | 250 |
| 16 | 5/8″ | -10 | 16.0 | 23.1 | 200 |
| 19 | 3/4″ | -12 | 19.0 | 26.4 | 162 |
| 25 | 1″ | -16 | 25.4 | 33.3 | 140 |
SAE 100R9
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 21.0 | 280 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 24.6 | 280 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 28.2 | 280 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 31.5 | 280 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 39.2 | 280 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 48.6 | 210 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 55.0 | 175 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 68.3 | 175 |
SAE 100R12
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 21.0 | 280 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 24.6 | 280 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 28.2 | 280 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 31.5 | 280 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 39.2 | 280 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 48.6 | 210 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 55.0 | 175 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 68.3 | 175 |
SAE 100R13
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 33.2 | 350 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 39.8 | 350 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 51.3 | 350 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 58.8 | 350 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 72.7 | 350 |
SAE 100R14
Detailed Parameter
SAE 100R14/TEFLON HOSE (Inner Smooth Tube)
| DN | INCH SIZE | SAE DASH SIZE | Inside | Outside | Working Pressure |
| mm | inch | Dash | mm | mm | Bar |
| 3 | 1/8″ | -3 | 3.2 | 6.2 | 250 |
| 5 | 3/16″ | -4 | 4.8 | 7.8 | 155 |
| 6 | 1/4″ | -5 | 6.4 | 9.1 | 137 |
| 8 | 5/16″ | -6 | 8.0 | 11.3 | 135 |
| 10 | 3/8″ | -7 | 9.5 | 12.6 | 132 |
| 11 | 13/32” | -8 | 10.3 | 13.2 | 127 |
| 13 | 1/2″ | -10 | 12.7 | 16.2 | 105 |
| 16 | 5/8″ | -12 | 16.2 | 19.3 | 95 |
| 19 | 3/4″ | -14 | 19.0 | 22.5 | 52 |
| 22 | 7/8″ | -16 | 22.2 | 25.8 | 50 |
| 25 | 1″ | -18 | 25.4 | 29.5 | 50 |
SAE 100R14/TEFLON HOSE (Inner Corrugated Tube)
| DN | INCH SIZE | SAE DASH SIZE | Inside | Outside | Working Pressure |
| mm | inch | Dash | mm | mm | Bar |
| 6 | 1/4″ | -5 | 6.4 | 10.5 | 120 |
| 8 | 5/16″ | -6 | 8.0 | 12.2 | 100 |
| 10 | 3/8″ | -7 | 9.5 | 15.5 | 90 |
| 13 | 1/2″ | -10 | 12.7 | 18.5 | 80 |
| 16 | 5/8″ | -12 | 16.2 | 22.5 | 60 |
| 19 | 3/4″ | -14 | 19.0 | 25.5 | 60 |
| 22 | 7/8″ | -16 | 22.2 | 28.5 | 50 |
| 25 | 1″ | -18 | 25.4 | 35.5 | 50 |
| 32 | 1-1/4″ | -22 | 31.8 | 42.5 | 40 |
| 39 | 1-1/2″ | -24 | 38.1 | 51.5 | 40 |
| 51 | 2″ | -32 | 50.8 | 60.5 | 40 |
SAE 100R15
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 23.3 | 420 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 26.8 | 420 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 36.1 | 420 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 42.9 | 420 |
| 32 | 1-1/4″ | -20 | 31.4 | 33.0 | 51.5 | 420 |
| 38 | 1-1/2″ | -24 | 37.7 | 39.3 | 59.6 | 420 |
| 51 | 2″ | -32 | 50.4 | 52.0 | 75.6 | 420 |
SAE 100R16
Detailed Parameter
| DN | INCH SIZE | SAE DASH SIZE | Inside (mm) | Outside (mm) | Working Pressure | |
| mm | inch | Dash | Min | Max | Max | Bar |
| 6 | 1/4″ | -4 | 6.2 | 7.0 | 14.5 | 400 |
| 8 | 5/16″ | -5 | 7.7 | 8.5 | 15.7 | 350 |
| 10 | 3/8″ | -6 | 9.3 | 10.1 | 18.8 | 330 |
| 13 | 1/2″ | -8 | 12.3 | 13.5 | 22.0 | 275 |
| 16 | 5/8″ | -10 | 15.5 | 16.7 | 25.4 | 250 |
| 19 | 3/4″ | -12 | 18.6 | 19.8 | 29.0 | 215 |
| 25 | 1″ | -16 | 25.0 | 26.4 | 36.6 | 165 |
Test Our Hydraulic Hoses in Your Application – No Obligation, Just Quality Assurance.
Why Choose Gushan Rubber as Your Hydraulic Hose Manufacturer
Own Factory Control
Full vertical integration from raw materials to finished products.
Customization Expertise
Modify specifications (diameter, pressure, materials) per your needs.
Favorable Price
No middlemen, direct production ensures quick turnaround.
Bulk Order Discounts
Cost-effective solutions for large-volume projects.
Certification
High-Performance Hydraulic Hoses Built for Industrial Demands
State-of-the-Art Factory for Hydraulic Hose Production
Located in Zaozhuang, China, our 20,000㎡ factory is equipped with advanced machinery and a dedicated R&D team. With over 23 years of experience, we ensure every hydraulic hose meets the highest industrial standards.
Step-by-Step Precision Manufacturing
Extrusion & Reinforcement: High-pressure extrusion ensures uniform hose walls, reinforced with spiral wire for maximum durability.
Vulcanization: Heat treatment enhances rubber strength and flexibility.
Assembly & Fitting: Custom hose assemblies are crafted with precision-fitted connectors.
Final Inspection: Every hose is tested for leaks, pressure resistance, and performance under extreme conditions.
Premium Materials, Rigorous Testing
We source high-grade rubber and thermoplastic compounds from trusted suppliers. Each batch undergoes strict quality checks, including pressure testing, abrasion resistance, and temperature tolerance assessments.
Tailored Solutions for Your Unique Needs
Our engineering team works closely with clients to design hydraulic hoses for specific applications, whether it’s high-pressure mining operations or extreme-temperature environments. We provide full technical support from concept to delivery.
Need a Custom Solution? Contact Us Today!
Hydraulic Hose Applications
Construction Machinery
Withstand high-pressure surges (up to 6,000 PSI) and abrasive environments on construction sites.
Agricultural Equipment
Resist UV exposure, chemical fertilizers, and extreme temperature swings (-40°C to +120°C).
Mining Operations
Handle ultra-high pressure (10,000+ PSI) and prevent leakage in dusty, high-vibration conditions.
Oil & Gas
Certified for flammable environments (ISO 1436) and resistant to hydrocarbon fluids.

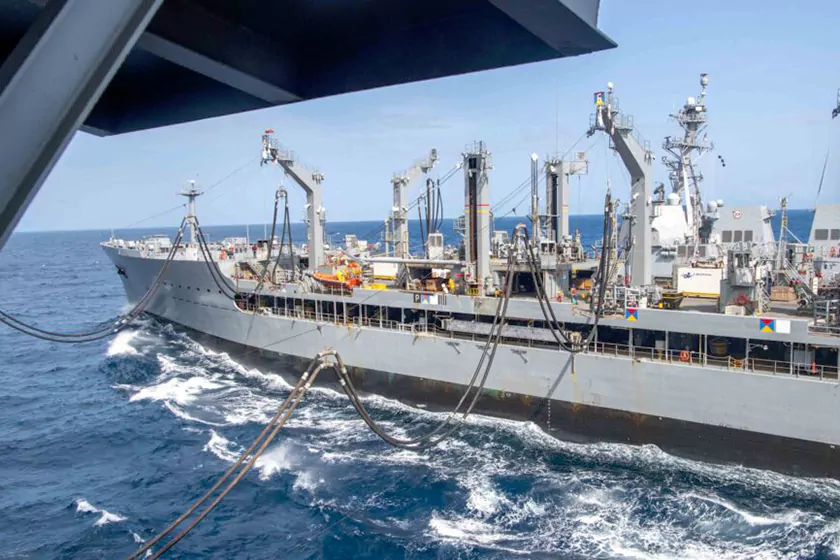

Marine & Port Equipment
Prevent saltwater corrosion and ensure flexibility in tight spaces.
Industrial Manufacturing
Deliver consistent performance under continuous high-pressure cycles and resist wear from hydraulic fluids.
